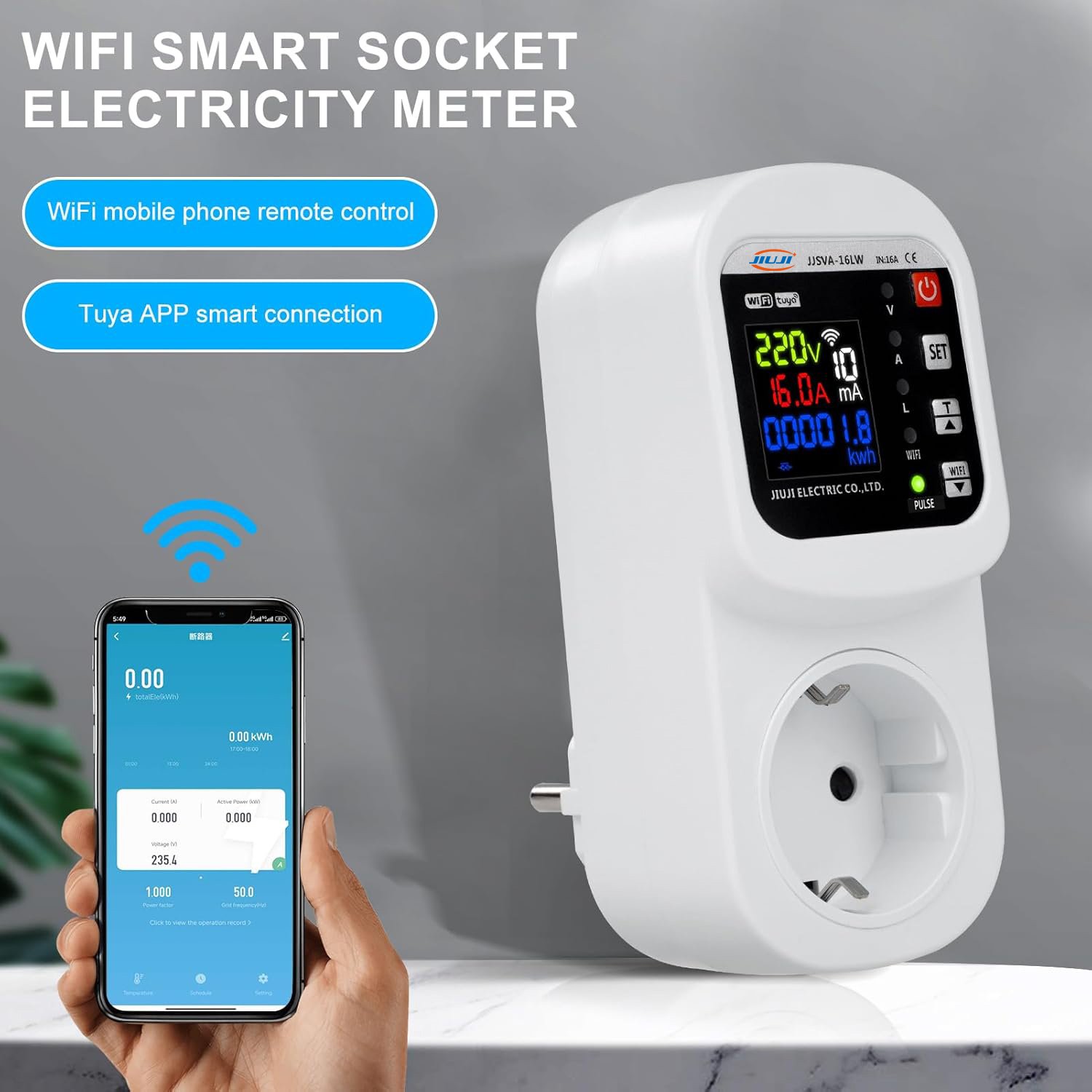

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 3

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 4

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 5

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 6

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 7

JJSVA-16LW Smart Voltage, Current & Leakage Protection Socket - 图片 8

Category Socket Plug Tags Leakage, Socket, Timer, Wifi

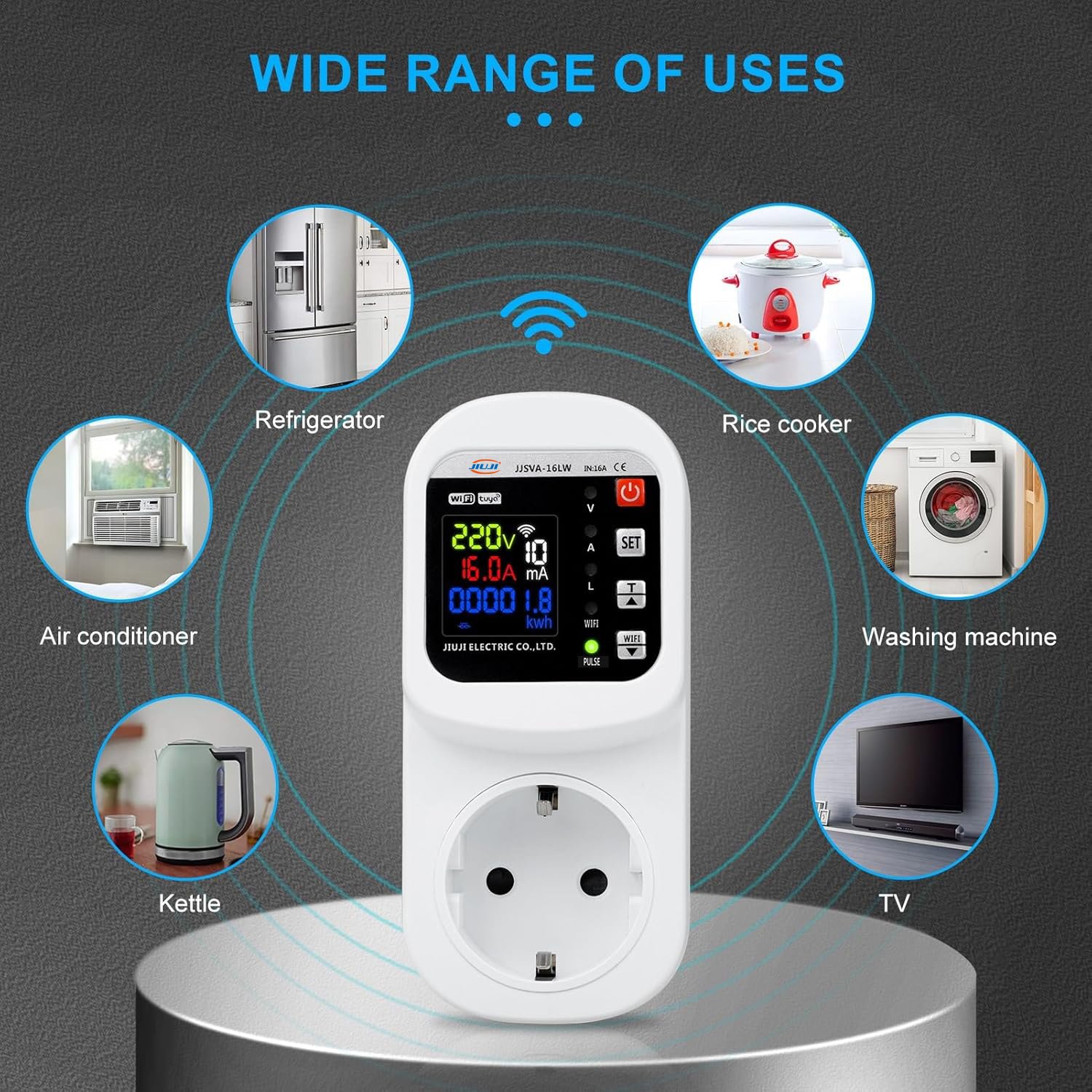

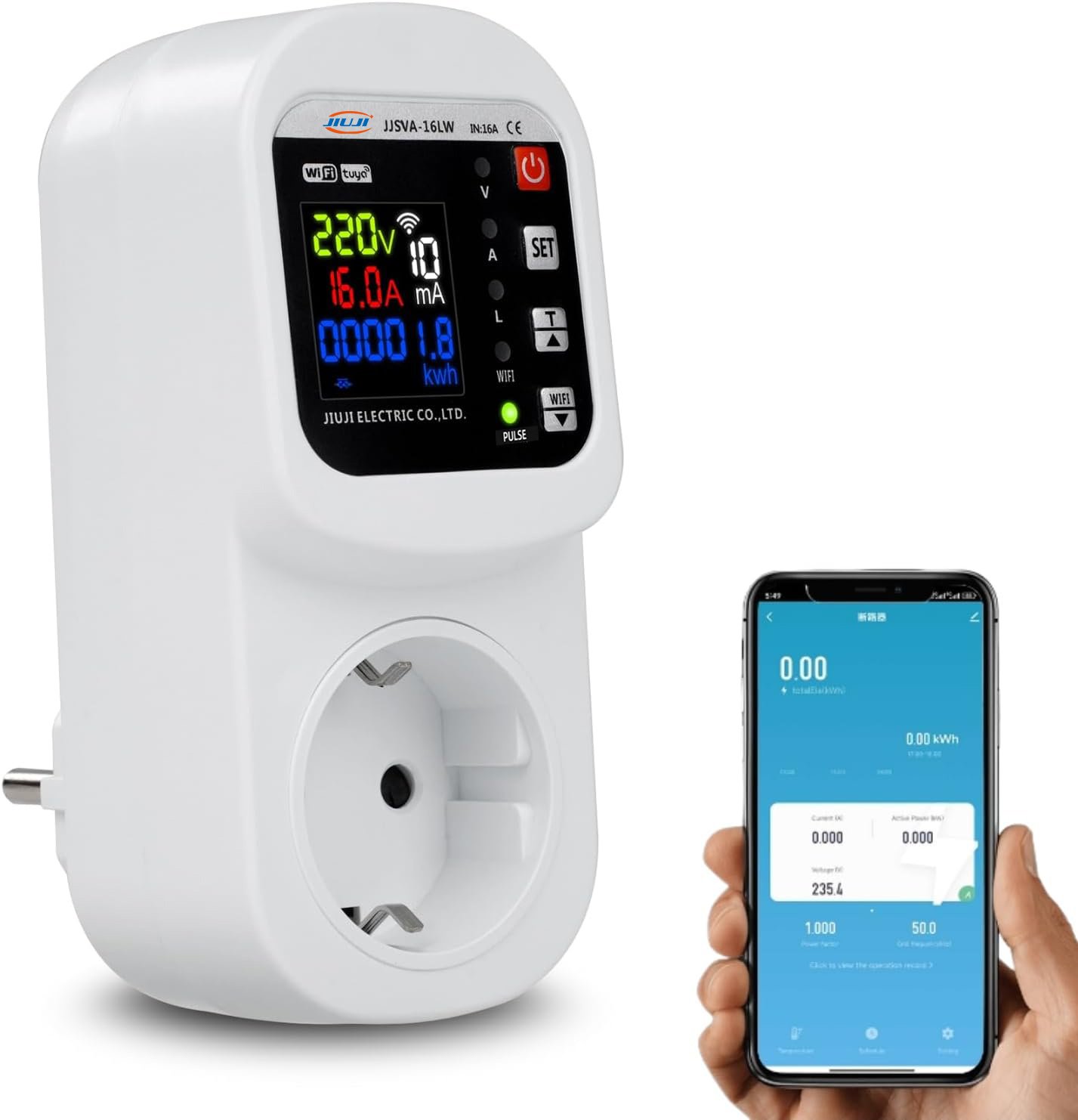

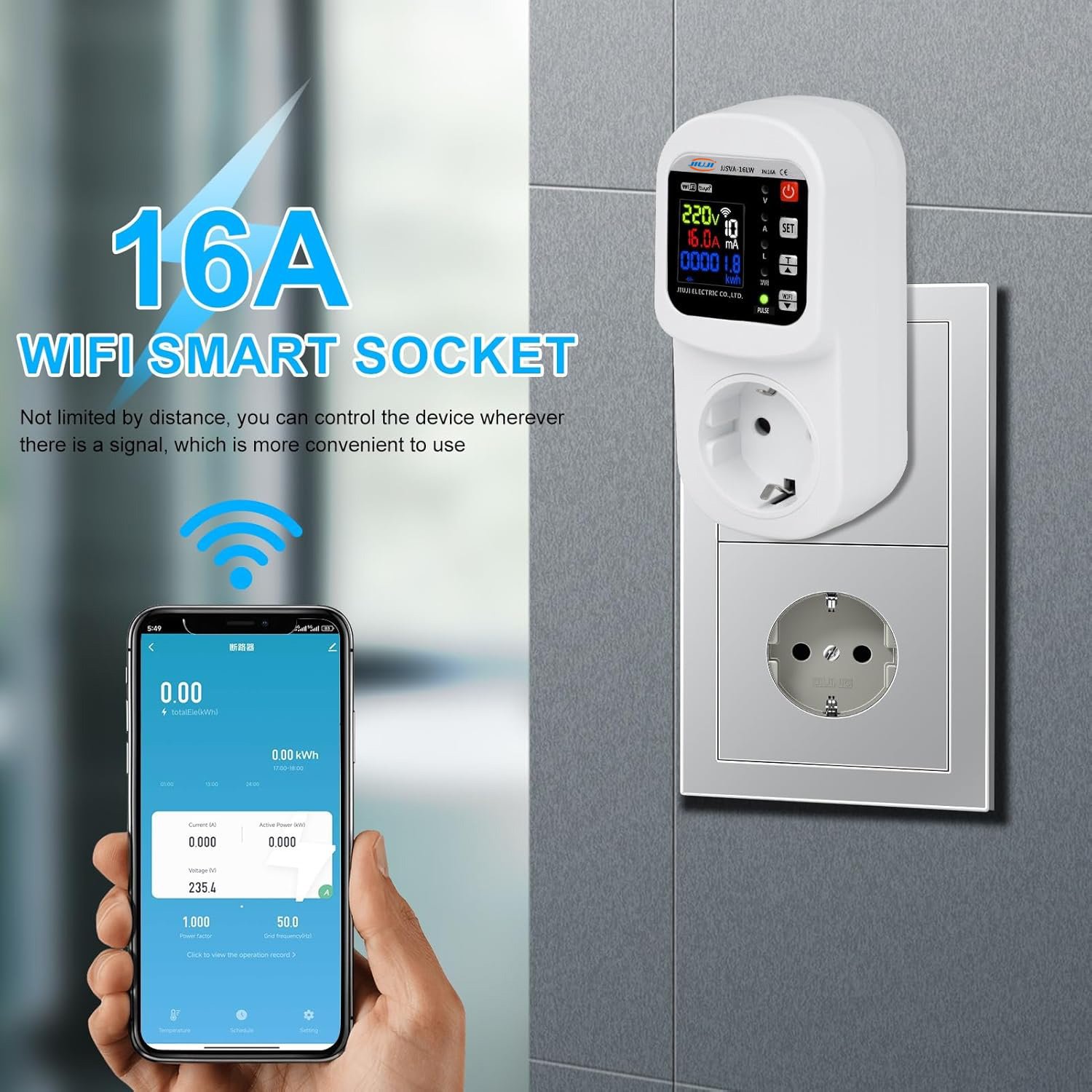

This Tuya WiFi leakage protection socket integrates voltage and current monitoring with leakage protection, ensuring real-time safety for your appliances and household electricity. Compatible with Smart Life / Tuya APP, it supports remote control and scheduling, allowing you to manage power usage anytime, anywhere.

其他信息

Item No.	JJSVA-16LW
Rated Voltage	AC 110V–230V
Rated Current	16A
Main Functions	Leakage protection, Timer control
Smart Control:	Tuya / Smart Life

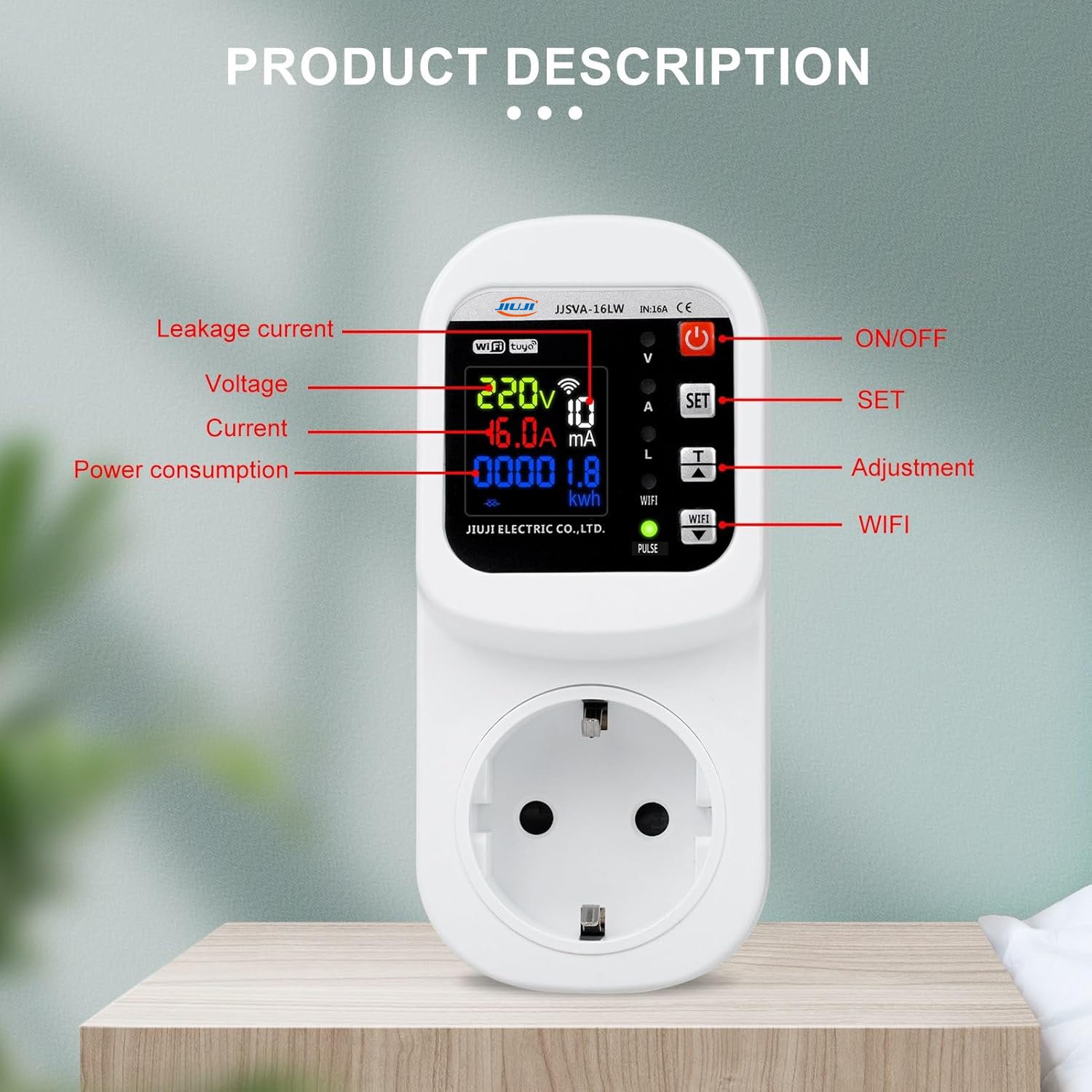

Smart Voltage, Current & Leakage Protection Socket Parameters

Function	Technical Parameter	Function	Technical Parameter
Input voltage	AC 140–300V	Power–on/display interval delay time	1–500s, default 10s

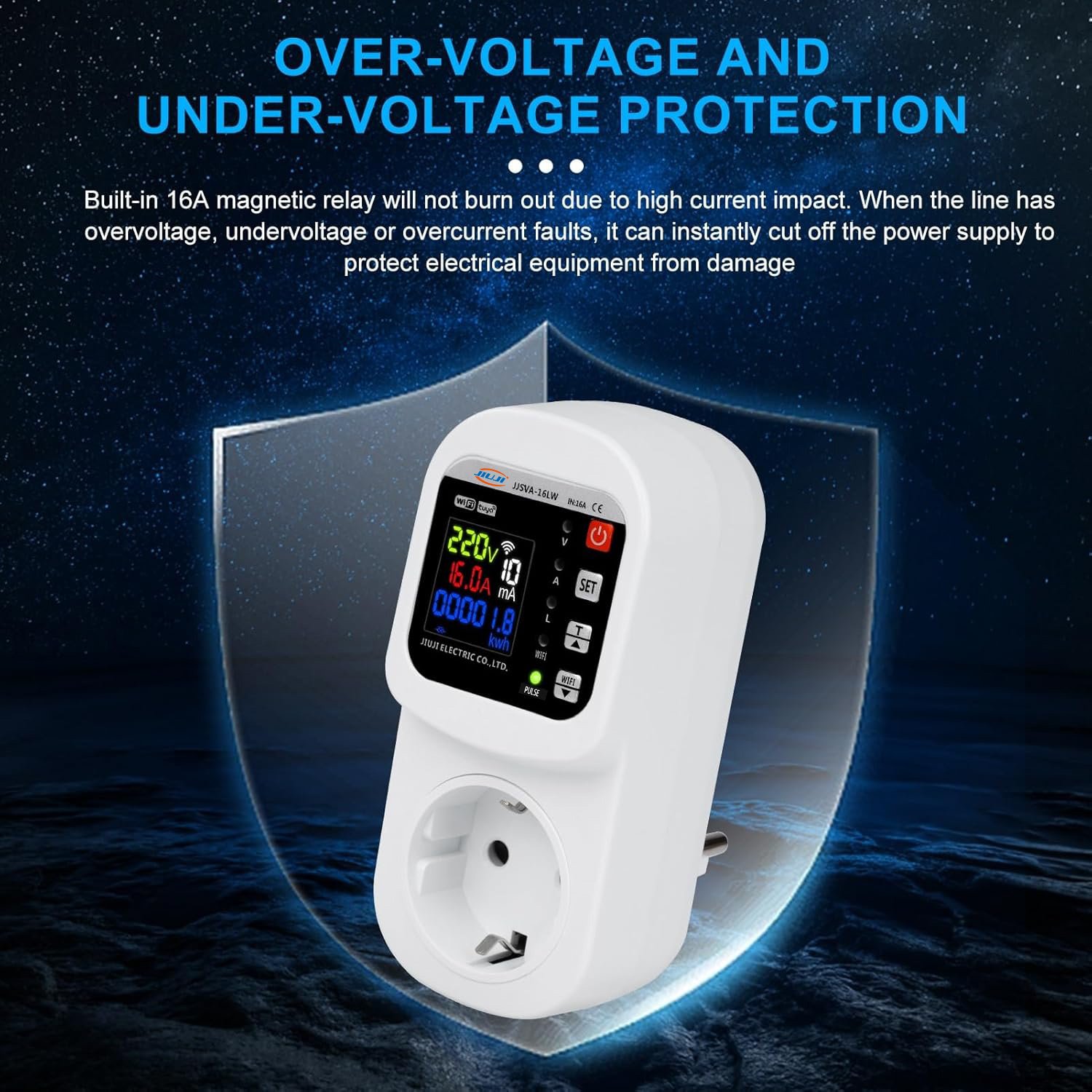

Over–voltage protection value	230–300V, default 270V	Over–voltage recovery value	225–295V, default 265V
Under–voltage protection value	140–210V, default 170V	Under–voltage recovery value	145–215V, default 175V
Over–current protection value	16A: 1–16A, default 16A	Over–current recovery value	0.5–15.5A
Leakage protection value	10–99mA, default 30mA	Voltage/current/kW calibration	–20% ~ +20%
Recovery delay time	1–500s, default 30s	Action time	0.1–30s, default 1s
Continuous over current/leakage faults	1–20 times, default OFF
Power consumption	≤ 2W	Electrical and mechanical life	≥ 100,000 cycles

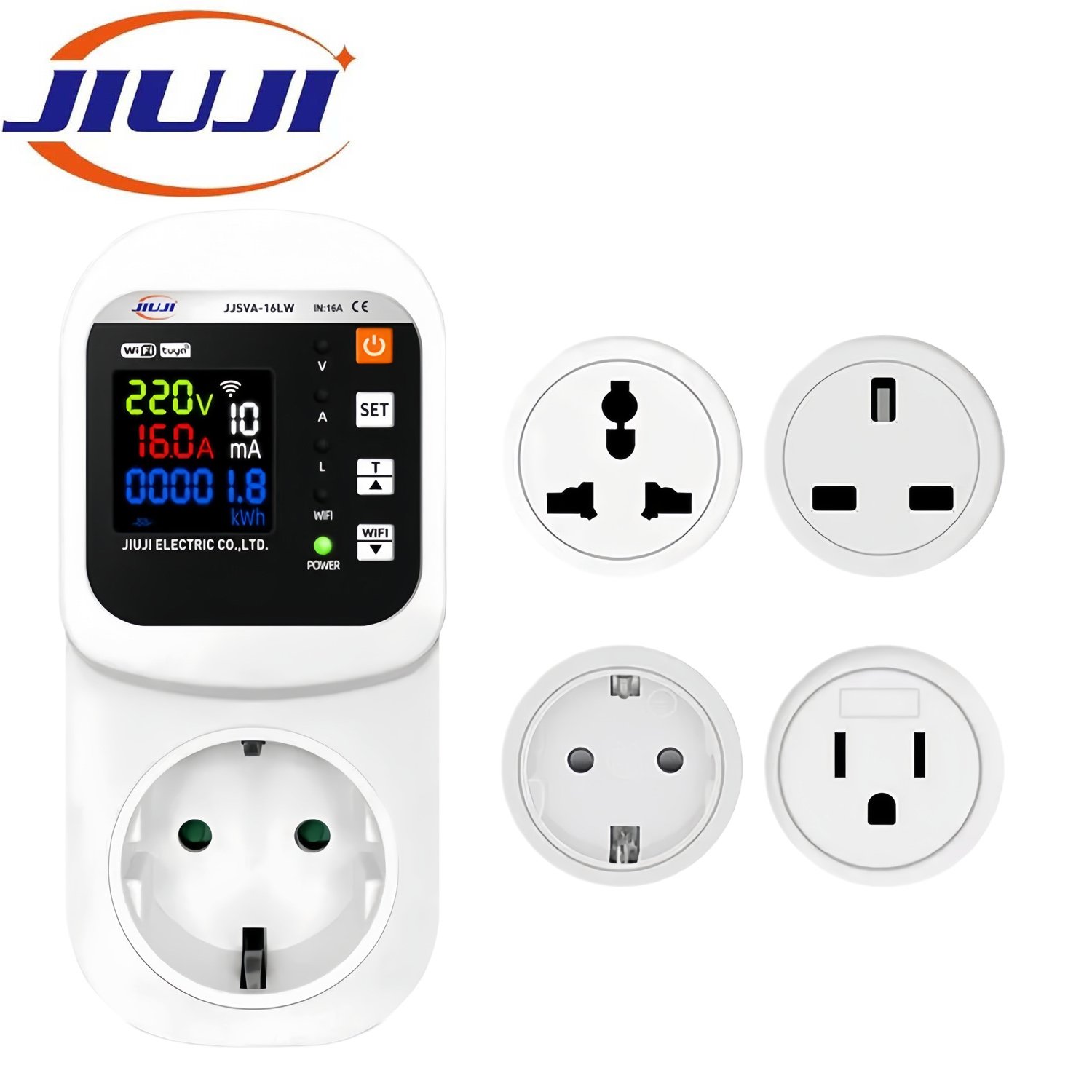

Boundary dimension	122 × 55 × 86 mm	Socket type	Universal, UK, EU, US
