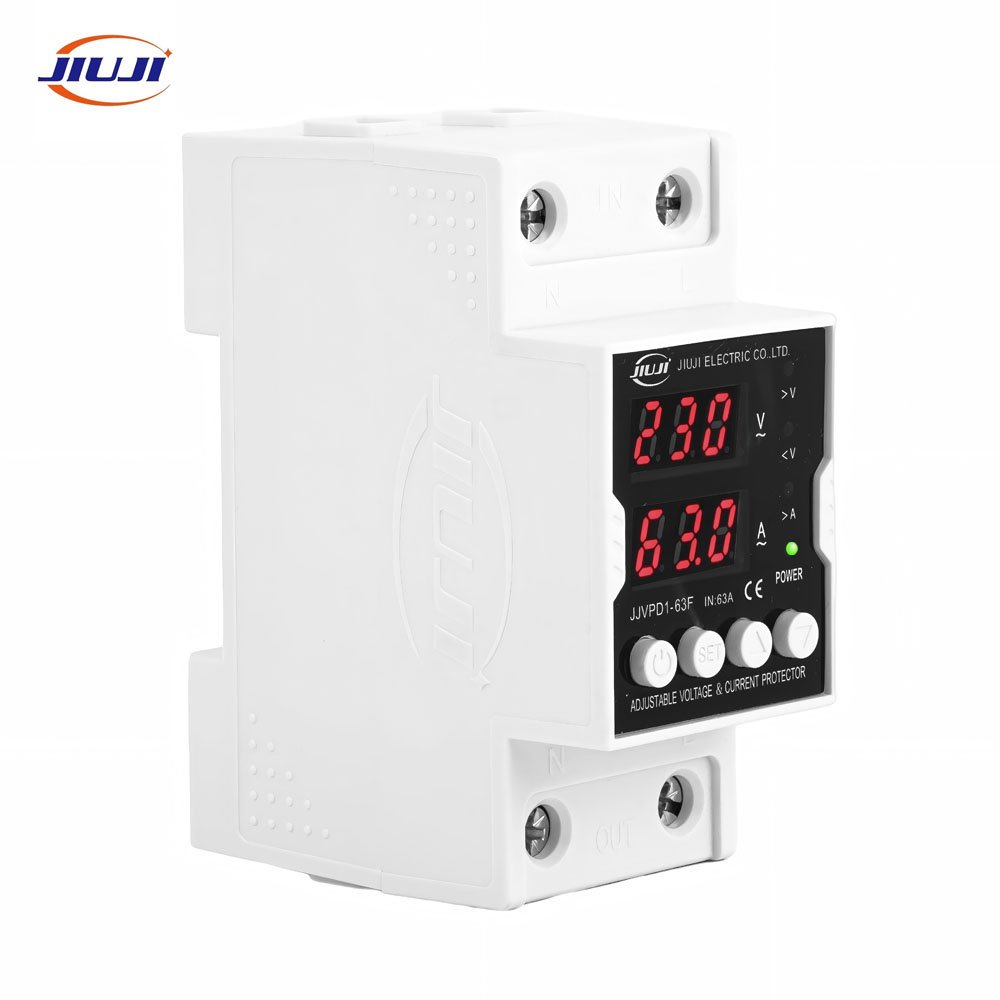

The JJVPD1-63F single-phase voltage protector is a key component for ensuring the safety of electrical systems, especially in solar power installations. It effectively prevents overvoltage, undervoltage, and overcurrent issues, thereby protecting connected equipment and extending its service life.
| Item No. | JJVPD1-63F |
|---|---|
| Input Voltage | AC 140-300V |
| Over-voltage Protection | 230-300V |
| Under-voltage Protection | 140-210V |
| Over-current Protection | 1-40/63/80/100A |
| Application | Residential Appliance Protection, Solar System Protection |
| Warrenty | 2 Years |
The JJVPD1-63F is a high-performance voltage protector designed to safeguard electrical equipment from voltage surges, undervoltage, and overvoltage conditions. This model is suitable for both residential and commercial applications, providing reliable protection to ensure long service life and optimal performance of your equipment.
Comprehensive Voltage Protection
The JJVPD1-63F provides both overvoltage and undervoltage protection, effectively shielding electrical equipment from harmful voltage fluctuations.
Overvoltage protection range: 230V–300V (default: 270V)
Undervoltage protection range: 140V–210V (default: 170V)
Adjustable Current Protection
This model supports adjustable current settings, allowing you to customize protection according to different power requirements.
Adjustable current range: 1–63A (default: 40A)
Advanced Recovery Functions
The JJVPD1-63F includes recovery delay settings to ensure your devices restart safely and under controlled conditions.
Overvoltage recovery delay: 1–500 seconds (default: 30 seconds)
Undervoltage recovery delay: 1–500 seconds (default: 30 seconds)
Fast response time: Responds to voltage faults within 0.1–30 seconds, ensuring immediate protection when needed.
Low Power Consumption
With power consumption below 2W, the JJVPD1-63F operates efficiently and is ideal for continuous use without noticeable energy loss.
High Durability
Engineered for long-term reliability, this device withstands up to 100,000 operating cycles, delivering outstanding durability even under demanding conditions.
DIN-Rail Installation
Designed for easy setup, it supports 35mm DIN-rail installation, making it suitable for both residential distribution boards and commercial electrical systems.
Wide Application
This protector is suitable for multiple uses, including:
Household appliances: Refrigerators, air conditioners, washing machines, and other sensitive devices
Industrial equipment: Machinery, industrial controllers, and electrical systems in commercial or factory environments
Solar systems: Protection for solar inverters and other PV equipment to maintain stable energy output
Compact and Lightweight
The JJVPD1-63F features a compact design, measuring only 9 × 7 × 4 cm and weighing 0.204 kg, making it easy to install and integrate into existing setups.
Conclusion
The JJVPD1-63F Voltage Protector is a reliable and cost-effective solution for safeguarding valuable electrical equipment from damaging voltage fluctuations. With its customizable settings, fast response, and durable construction, it is ideal for both residential and commercial environments where stable voltage is essential for extending equipment lifespan.
